Features:
Unbeatable value and the best price in the market! Increased ground clearance Front AND Rear adjustable track bars are made of forged solid steel for unsurpassed strength and durability Lower control arms feature high clearance design Extreme travel long arms keep optimum alignment and give optimum articulation. X-Flex control arm features: durable OEM style rubber bushings. Flex joints are fully rebuildable. Flex joints feature a massive 2.5" diameter body and 1.25" thread. Fully greasable. Adjustable retainer ring. Upper joints pivot up to 20 degrees. Lower joints pivot up to 35 degrees.Manufacturer Notes:
Fits Unlimited models ONLY . A Slip Yoke Eliminator with CV Driveshaft is recommended to avoid driveline vibration. Rubicon models do not need a SYE kit or transfer case drop but a CV driveshaft is still recommended. Exhaust will have to be cut and rerouted to make sure it is away from the moving components.Install Time:
8-9 hoursFront Components:

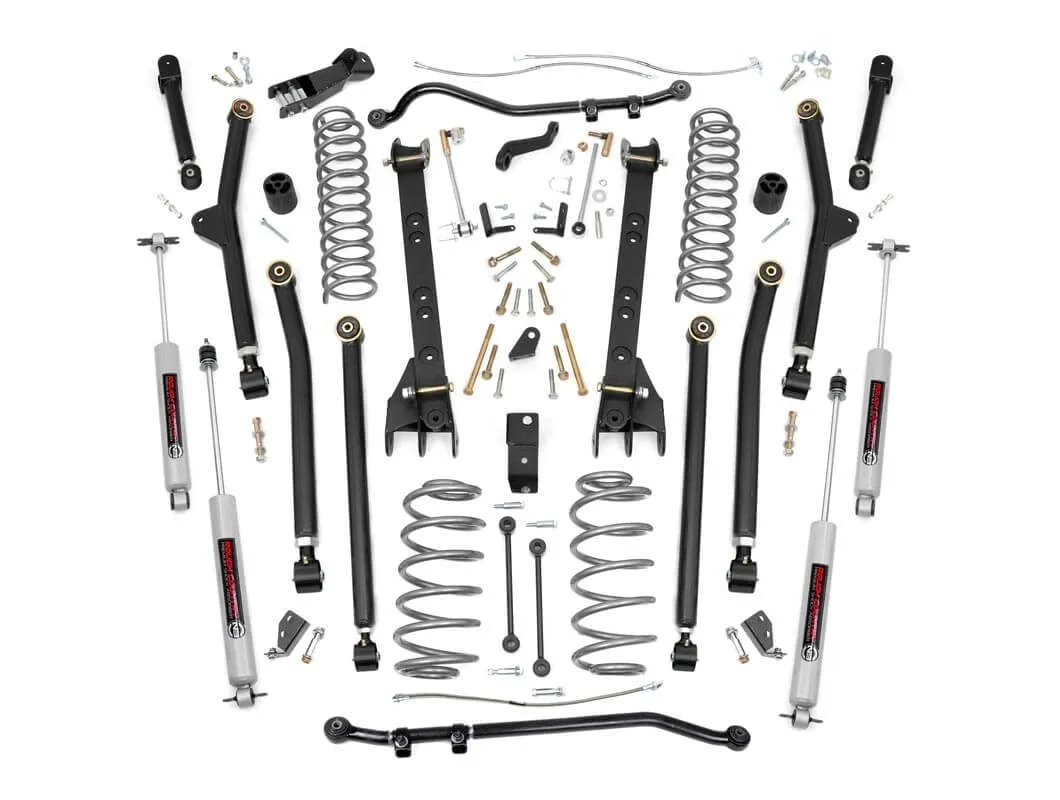

Lifted high flex coil springs Upper adjustable control arms Lower adjustable control arms Control arm mounting brackets Bumpstop extensions Sway-bar quick disconnects Forged adjustable track bar Track bar drop bracket Pitman arm Stainless steel braided brake lines HardwareRear Components:
Lifted high flex coil springs Upper adjustable control arms Lower adjustable control arms Extended sway-bar links Forged adjustable track bar Stainless steel braided brake line Bumpstop extensions HardwareTire Fitment:
| Size | Wheel | Bolt Pattern | Wheel Offset | Note |
|---|---|---|---|---|
| 33x12.50R20 | 20x10 | 5x4.5 | -19 | Minor Trimming |
| 305/55R20 | 20x10 | 5x4.5 | -19 | Minor Trimming |
| 285/55R20 | 20x10 | 5x4.5 | -19 | Minor Trimming |
| 33x12.50R20 | 20x10 | 5x4.5 | -18 | Minor Trimming |
| 305/55R20 | 20x10 | 5x4.5 | -18 | Minor Trimming |
| 285/55R20 | 20x10 | 5x4.5 | -18 | Minor Trimming |
