DETAILS
HUGE VARIETY. SMALL FOOTPRINT.
Sometimes you have space for multiple pieces of equipment and sometimes you don’t. That is exactly why our Multi-Stations can be such a great option when you’re still looking for the total workout experience and commercial feel while needing to maximize space. Each of our multi-stations have the smallest footprint possible while combining the most essential and core elements from our strength lines. Add in great features like swiveling pulleys on the Lat Pull Down, Low Row and Triceps Press and fully adjustable pulleys on the Cable Cross Over System, and you have an economical, space-saving equipment solution that doesn’t look, feel or train like one.
W: 200 IN (508) CM)
L: 152 IN (387 CM)
H: 94 IN (239 CM)
STACK WEIGHT: LAT PULL DOWN/LOW ROW 297 LBS (135 KG)
TRICEPS PRESS 231 LBS (105 KG)
CROSS OVER 2 X 115.5 LBS (2 X 52.5 KG)
OVERALL WEIGHT: 2350 LBS (1066 KG)
SHIPPING WEIGHT: 2556 LBS (1160 KG)
*Frames colors 19, 25, 26, and 60 are available at no cost but longer lead times apply, varies by region.
FEATURES
- Lat Pull Down with swivel pulley
- Triceps Press with swivel pulley
- Low Row with swivel pulley
- Fully adjustable cable cross over system
- Integrated pull-up station
- Stabilization handles for balance and control
- Lock N Load® weight selection system
- Rubber feet for floor protection
- 5 lb incremental add on plates
ADJUSTMENTS & MOVEMENTS
| USER DEFINED RANGE OF MOTION | Yes |
|---|---|
| ASSISTED ADJUSTMENTS | Fully adjustable cable cross over system with spring-loaded pull pin handle for vertical adjustments |
| COLOR CODED PIVOT POINTS AND ADJUSTMENTS | Yes on all units |
| UNILATERAL OR BILATERAL MOVEMENT | User defined path of motion with swivel pulley and unlimited high-low cable positioning combinations |
| CONVERGING OR DIVERGING MOVEMENTS | Converging and Diverging motion with user pre-stretch adjustment for optimal start position dependent on SKU |
| PULLEY RATIO | N/A |

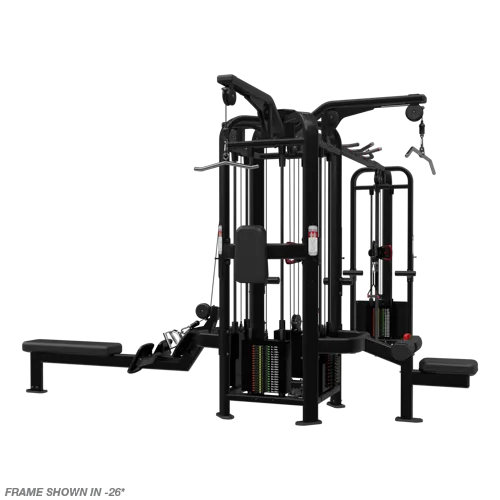

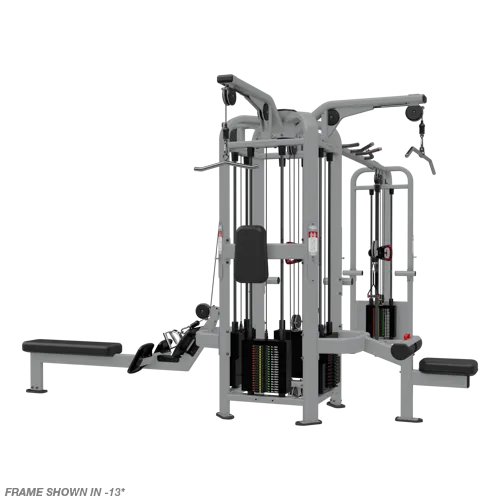

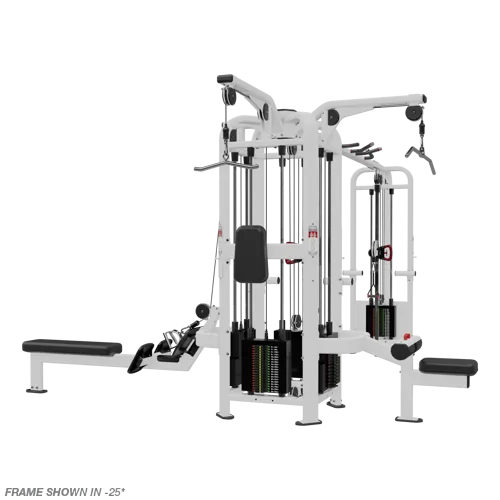

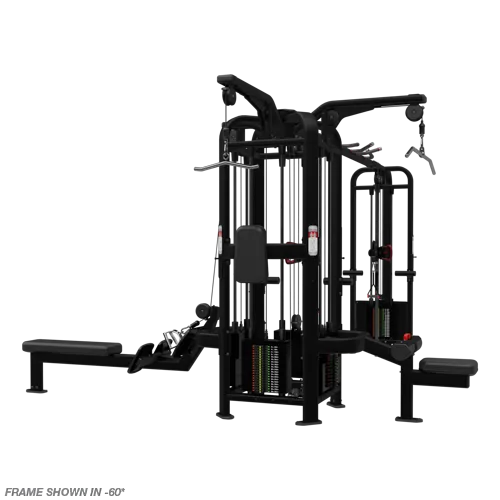

5 STATION 9NP-M9605
| W | 200 IN (508) CM) |
|---|---|
| L | 152 IN (387 CM) |
| H | 94 IN (239 CM) |
| STACK WEIGHT | LAT PULL DOWN/LOW ROW 297 LBS (135 KG) TRICEPS PRESS 231 LBS (105 KG) CROSS OVER 2 X 115.5 LBS (2 X 52.5 KG) |
| OVERALL WEIGHT | 2350 LBS (1066 KG) |
| SHIPPING WEIGHT | 2556 LBS (1160 KG) |
| TOTAL STACK WEIGHT | 1056 lbs (479 kg) |
|---|---|
| INCREMENTAL WEIGHT SYSTEM | 5 lb incremental add on plates |
| WEIGHT STACK TOWER HEIGHT | N/A |
| PLATE LOADED | No |
| WEIGHT STORAGE SOLUTION | N/A |
| LNL TECHNOLOGY | Yes |
LOCK N LOAD®WEIGHT SELECTION
Selecting a weight with the intuitive Lock N Load design is as easy as flicking a switch. Universally color coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance free operation. Lock N Load prevents unnecessary maintenance headaches since there are no pins to lose or replace.
PRODUCT CUSTOMIZATION
We know what it takes to build an authentic, meaningful brand experience. Our customization program is the perfect way to leverage your personal brand and make a strong first impression. Get Nautilus multi-stations with in a variety of custom frame color and upholstery options.
FRAME SPECIFICATIONS & CABLE INFORMATION
| STANDARD FRAME COLOR OPTIONS | Silver |
|---|---|
| STANDARD UPHOLSTERY COLOR OPTIONS | N/A |
| FRAME FINISH | Electrostatic Powder coating |
| CUSTOMIZABLE PAINT OPTIONS AVAILABLE | Yes with additional fees and extended lead times |
| CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLE | Yes with additional fees and extended lead times |
| CUSTOMIZABLE BRANDING OPTIONS AVAILABLE | Yes with additional fees and extended lead times |
| CABLE VS. BELT DRIVEN TRANSMISSION | Cable drive |
| BOLT DOWN LOCATIONS DEFINED | Yes |
| INTEGRATED LEVELING SYSTEM | No, rubber feet for floor protection |
| HARDWARE TYPE | Hex / Button Head |
| TUBBING STYLE & THICKNESS | Modern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga |
USER SPECIFIC INFORMATION
| STATIC PLACARDS | Yes, simple and intuitive placard |
|---|---|
| MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLE | Yes |
| ANIMATED LENTICULAR | No |
| SAFETY CATCH & STOPS | Yes |
| WATER BOTTLE HOLDER | No |
| PHONE HOLDER | No |
| GRIP SPECIFICATIONS | Stabilization handles for balance and control. Rubber, large grips for pushing, smaller grips for pulling. Multiple handle accessory options: add-on package avail 95-0590 (1) triceps rope, (1) aluminum lat bar, (1) aluminum curl bar, (1) aluminum low row handle, (1) single rope handle, (1) v-triceps bar, (1) ankle cuff, (1) walking wait belt |
| FOOT PLATFORM | Independent rubber foot platforms for low row stabilization |
| CONTOURED PADS | N/A |
| RESTRAINT SYSTEM | N/A |
